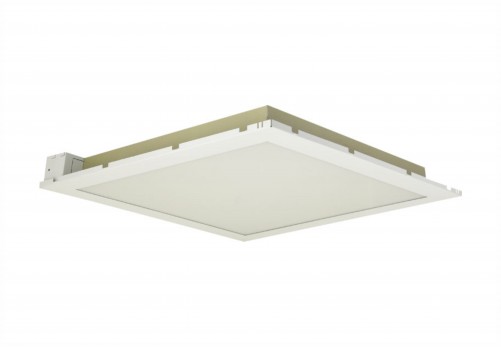

HAMSA G2

Highly efficient LED luminaire designed for M600 or M625 ceilings with a large radiating surface and low glare.

BIM BIM objects
Regulace DALI DALI regulation
Stupeň krytí (IP40) Degree of protection
Zjistit více ikonka Learn more about the product
Zjistit více ikonka Learn more about the product
HAMSA G2

Specifications

Electrical parameters

Light source LED
Power voltage AC 230 V / 50 Hz
Connection method terminal block
Ballast part electronic driver
Possibility of regulation non-dimmable (not labeled), DALI (DALI), corridor function (EPS-C)
Emergency module no module (not labeled)
integrated emergency module, the autonomy of 1 hrs. (NM1)
integrated emergency module, the autonomy of 3 hrs. (NM3)

Light parameters

Optical system diffuser
Light distribution direct
Colour rendering index Ra > 80, Ra > 90
Colour temperature 3,000 K / 4,000 K
Service life > 80,000 hrs. (L80B20)

Construction

Luminaire body powder-coated steel sheet
Colour RAL 9003
Surface type matte
Luminaire cover opal (DPO), microprisma (DMPP)

Safety

Protection class I
Maximum ambient temperature +5 / +35 °C
Protection of the luminaire's electrical part IP 20
Protection of the luminaire's optical part IP 40

Mounting

Method to the ceiling M600 » to the ceiling M625 (M625) » to plasterboard (S)
Recommended height max. up to 5 m

Accessories

Clips NO
Suspension accessories NO
Use classrooms, commercial spaces, corridors, interiors, offices

Energy label

Energy label

Files for download

Datasheet Eulumdata EU DoC Installation instructions
