Learn more about the product
Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 230 V / 50 Hz |
| Connection method | terminal block cable out 3 × 1,5 mm2, 1,5 m (on request) cable out 5 × 1,5 mm2, 1,5 m (on request) Gesis 3-pin (on request) Gesis 5-pin (on request) |
| Ballast part | electronic driver |
| Possibility of regulation | non-dimmable (not labeled), DALI (DALI) |
| Emergency module | additional emergency LED module (on request) |
Light parameters
| Optical system | asymmetric (A), symmetrical (C) |
| Light distribution | direct |
| Colour rendering index | Ra > 80 |
| Colour temperature | 4,000 K |
| Service life | > 100,000 hrs. (L80B50) |
Construction
| Luminaire body | powder-coated steel sheet |
| Colour | RAL 9003, other RAL (on request) |
| Surface type | gloss |
| Cover | protective wire guard |
Safety
| Protection class | I |
| Maximum ambient temperature | +5 / +35 °C |
| Ingress protection | IP 20 |
| Mounting on normally flammable surfaces | YES |
| Certification | DIN 18032-3:1997-04 German ball impact resistance test |
Mounting
| Method | suspension, surface mounted – holder (on request) |
| Recommended height | from 4 to 12 m |
Accessories
| Clips | NO |
| Suspension accessories | suspension hook; clamp for attachment and chain (on request) |
| Use | school gyms, sports grounds, tennis halls |
Variants
Optical and electrical parameters tolerance ± 10 %

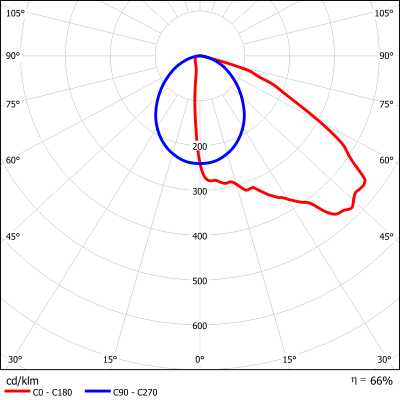

Photometry
Energy label
Datasheet
Eulumdata
