TEKO Rope

Compact line of LED luminaries offering a wide range of fixture options. The advantage of the TEKO line luminaries is a possibility to integrate selected additional elements including the Night Tune system.

Learn more about the product

TEKO Rope

Specifications

Electrical parameters

Light source	LED
Power voltage	AC 220–240 V / 50–60 Hz
Connection method	connector Gesis (G) - standard
Ballast part	electronic driver with surge protection L/N-Ground 10 kV
Surge protection	additional surge protection 10 kV (S)
Fuse	fuse 6,3 A (J)
Possibility of regulation	non-dimmable (not labeled), DALI (max. 3 core cable), night dimming (A) preparation for wireless communication NEMA (N), Zhaga (Z)
Constant lumen output	CLO (C)

Light parameters

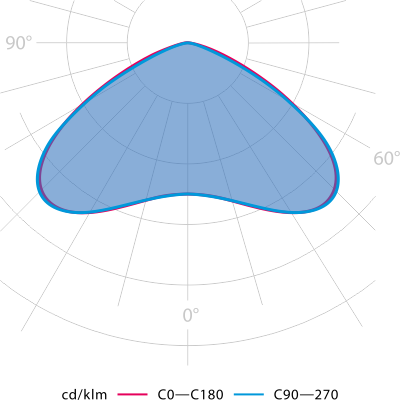

Optical system	roads (Mxx), roads (Lxx), directional (Pxx) area (Uxx), combined optics (Kxx), BACK Light shades (BL1), FRONT Light shades (FL1)
Light distribution	direct
Colour rendering index	Ra > 70, Ra > 80
Colour temperature	BLUE FREE (AMBER) / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K / 5 700 / TW
Service life	> 120 000 hrs. (L90)

Construction

Luminaire body	aluminum cast
Colour	RAL 7015/9006, other RAL (on request)
Surface type	matte
Luminaire cover	tempered glass

Safety

Protection class	I, II
Maximum ambient temperature	-40 / 55 °C
Ingress protection	IP 66
Impact protection	IK 09
EMC	YES
Vibration test	NO
Static load test	NO
Corrosion test – Salty spray	YES (1500 hours)
Lifetime test	YES
Certification	ENEC+, ENEC, Zhaga-D4i, IDA Dark Sky Approved
CB mark	YES
RoHS	YES
REACH	YES

Mounting

Method	rope mounting
Recommended height	max. up to 10 m
Use	outdoor areas, pedestrian zones, square, streets

Variants

Luminaire ambient temperature TQ 25 °C
Initial color consistency: ≤ 5 SDCM
IDA ﬁxture seal of approval relates to ≤ 3 000 K
To meet IDA requirements, the luminaires must be installed horizontally with the road
Optical and electrical parameters tolerance ± 10 %

When using the CLO function, the initial power and luminous ﬂux
is 10 % lower than the value shown in the table. LDT curves with
CLO function have the letter “C” at the end of their marking.

The term BLUE FREE (AMBER) in lighting technology refers to light with a minimum amount of the blue part of the light spectrum (< 2%).
