DURGA G2

Anti-vandal LED luminaire designed for areas with a high risk of damage.

Learn more about the product

DURGA G2

Specifications

Electrical parameters

Light source	LED
Power voltage	AC 230 V / 50 Hz
Connection method	terminal block (supplied without cable)
Ballast part	electronic driver with integrated surge protection
Possibility of regulation	without regulation (not labeled), DALI (4),astrodim (A)
Emergency module	NO

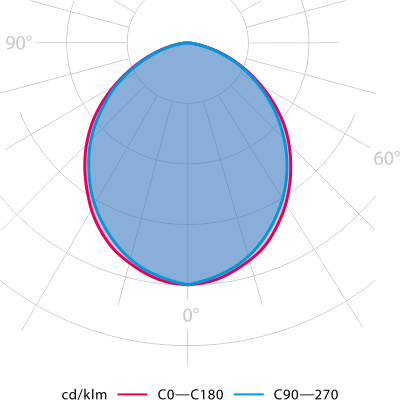

Light parameters

Optical system	diffuser
Light distribution	direct
Colour rendering index	Ra > 70, Ra > 80
Colour temperature	» 2 700 K » 3 000 K » 4 000 K
Service life	> > 100 000 hod. (L90B10)

Construction

Luminaire body	powder-coated steel sheet
Colour	RAL 7016, other RAL (on request), exterior finish (V)
Surface type	gloss
Luminaire cover	glass diffuser, opal (DPO)

Safety

Protection class	I, II
Maximum ambient temperature	-30 / +40 °C
Protection of the luminaire's electrical part	IP 65
Protection of the luminaire's optical part	IP 65
Mounting on normally flammable surfaces	YES
Shock resistance	IK 10

Mounting

Method	surface mounted, corner mounted
Recommended height	from 2 to 6 m

Accessories

Clips	NO
Suspension accessories	corner fixing (on request)
Notes	Luminaire is equipped with security screws are for protection against theft
Use	garages, jails, passages, pedestrian, underpasses
