SHANTA S

Modern outdoor LED luminaire for public lighting with integrated overvoltage protection and adjustable joint ± 10°.

Regulace DALI DALI regulation
Mechanická odolnost (IK8) Mechanical resistance
Stupeň krytí (IP66) Degree of protection
ENEC
Zjistit více ikonka Learn more about the product

Specifications

Electrical parameters

Light source LED
Power voltage AC 230 V / 50 Hz
Connection method leading out cable, leading out cable with connector (G), without cable (WO)
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Fuse fuse 6,3 A (J)
Possibility of regulation non-dimmable (not labeled), DALI (DALI), night dimming (A)
preparation for wireless communication NEMA (N), Zhaga (Z)
Constant lumen output CLO (C)

Light parameters

Optical system roads (Mxx), roads (Lxx), directional (Pxx)
area (Uxx), pedastrian crossing (ZLx/ZPx) - cannot ZP06 and ZL06
combined optics (Kxx)AMBER modul (Nxx), AMBER optik (ALxx)
 BACK Light mask (BM2)
Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature 2,700 K / 3,000 K / 4,000 K / 5,000 K
Service life > 100,000 hrs. (L90B10)

Construction

Luminaire body aluminum cast
Colour RAL 7015
Surface type matte
Luminaire cover tempered glass

Safety

Protection class I, II
Maximum ambient temperature -40 / +50 °C
Ingress protection IP 66
Impact protection IK 08

Mounting

Method pole or boom mounted (48–60 mm); 60–76 mm (on request)
adjustable joint ± 10°
Recommended height max. up to 8 m
Use bike path, outdoor areas, pedestrian zones, sidewalks, road classes I. and II.

Variants



* Weight may vary depending on the luminaire variant
Optical and electrical parameters tolerance ± 10 %

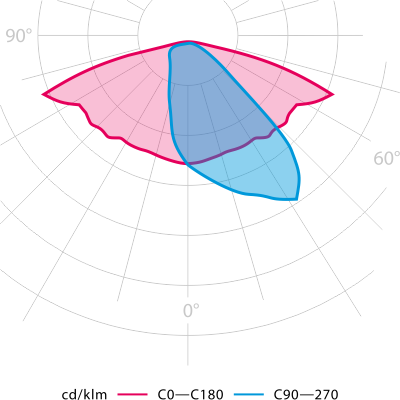

Photometry

Photometry

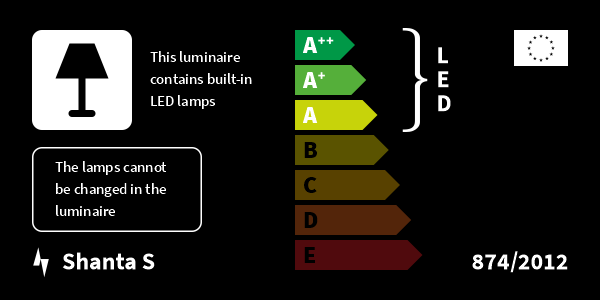

Energy label

Energy label
